CRF50F

honda-crf50f

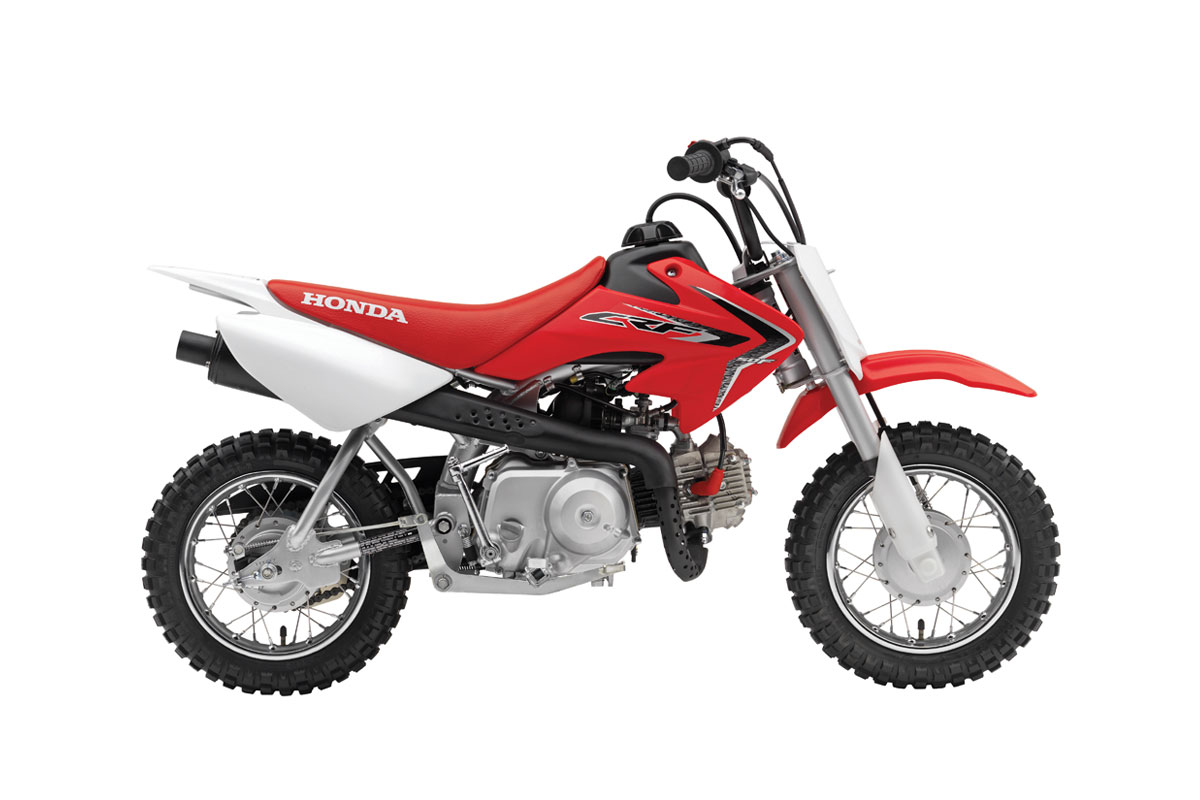

INTRODUCING THE CRF50F

With its single-shock rear suspension, inverted fork and bulletproof 49cc four-stroke engine, the CRF50F is Honda's best-selling off-road machine.

CHASSIS/SUSPENSION

Front suspension spring and damping rates for optimum rider comfort and bump absorption

High-tensile steel frame and swingarm offer excellent balance of strength and compliance

Inverted telescopic fork offers a plush 89mm of suspension travel

Single-shock rear suspension provides 71mm of well-damped travel and is mounted to a reinforced swingarm

28-spoke, 254mm diameter wheels with die-cast-aluminum hubs look great, provide excellent maneuverability and offer smooth ride quality

Powerful, lightweight front and rear drum brakes

Wide, long-wearing off-road tires offer excellent traction

ENGINE/DRIVETRAIN

Dependable 49cc SOHC four-stroke engine develops smooth, easy-to-use power

10.0:1 compression ratio for good performance

Maintenance-free CD ignition and automatic cam-chain tensioner

13mm piston-valve carburetor offers excellent fuel consumption and throttle response throughout the rpm range

Smooth-shifting three-speed transmission and automatic clutch offer simple operation and easy takeoffs

Durable #420 drive chain offers dependable operation and low maintenance

USDA-qualified muffler/spark arrester is efficient and quiet

Closed crankcase ventilation system safeguards against engine oil contamination

ADDITIONAL FEATURES

CRF®-R-inspired bodywork

Engine design produces low emissions and meets California Air Resources Board (CARB) off-road emissions standards

Narrow 109mm wide CR®-type seat, slim fuel tank and extra-low 548mm seat height provide excellent comfort and mobility for a broad range of young riders

Adjustable throttle limiter

Keyed ignition switch prevents unauthorized use

Motocross-style handlebar with padded protector

Small-size control levers enhance young rider comfort and confidence

High-quality, comfortable grips

Polyethylene fuel tank is tough and lightweight, just like that of the bigger CRFs

Small overall size and light weight simplify transport

Handlebar-mounted number plate

Easy-access washable foam air filter simplifies maintenance

Folding, cleated footpegs offer secure footing even in muddy conditions

Durable plastic fenders are nearly indestructible

Honda Racing™-inspired colors and graphics

ENGINE
ENGINE TYPE 49cc air-cooled single-cylinder 4-stroke
BORE AND STROKE 39 x 41.4mm
COMPRESSION RATIO 10:1
VALVE TRAIN SOHC; 2-valve
CARBURATION 13mm piston-valve
IGNITION CDI
TRANSMISSION 3-speed with automatic clutch
STARTER Kick
FINAL DRIVE #420 chain
FRAME
DIMENSIONS 1,302mm x 581mm x 774mm
WHEELBASE 911mm
RAKE (CASTER ANGLE) 25°
TRAIL 32mm
SEAT HEIGHT 548mm
GROUND CLEARANCE 146mm
FUEL CAPACITY 2.6 lites (including 0.7 litre reserve)
KERB WEIGHT 50kg
SUSPENSION
FRONT Inverted telescopic fork; 87mm stroke
REAR Single shock; 70mm travel
BRAKES
FRONT 80mm leading drum
REAR 80mm leading drum
TYRES
FRONT 2.50 10-inch
REAR 2.50 10-inch
