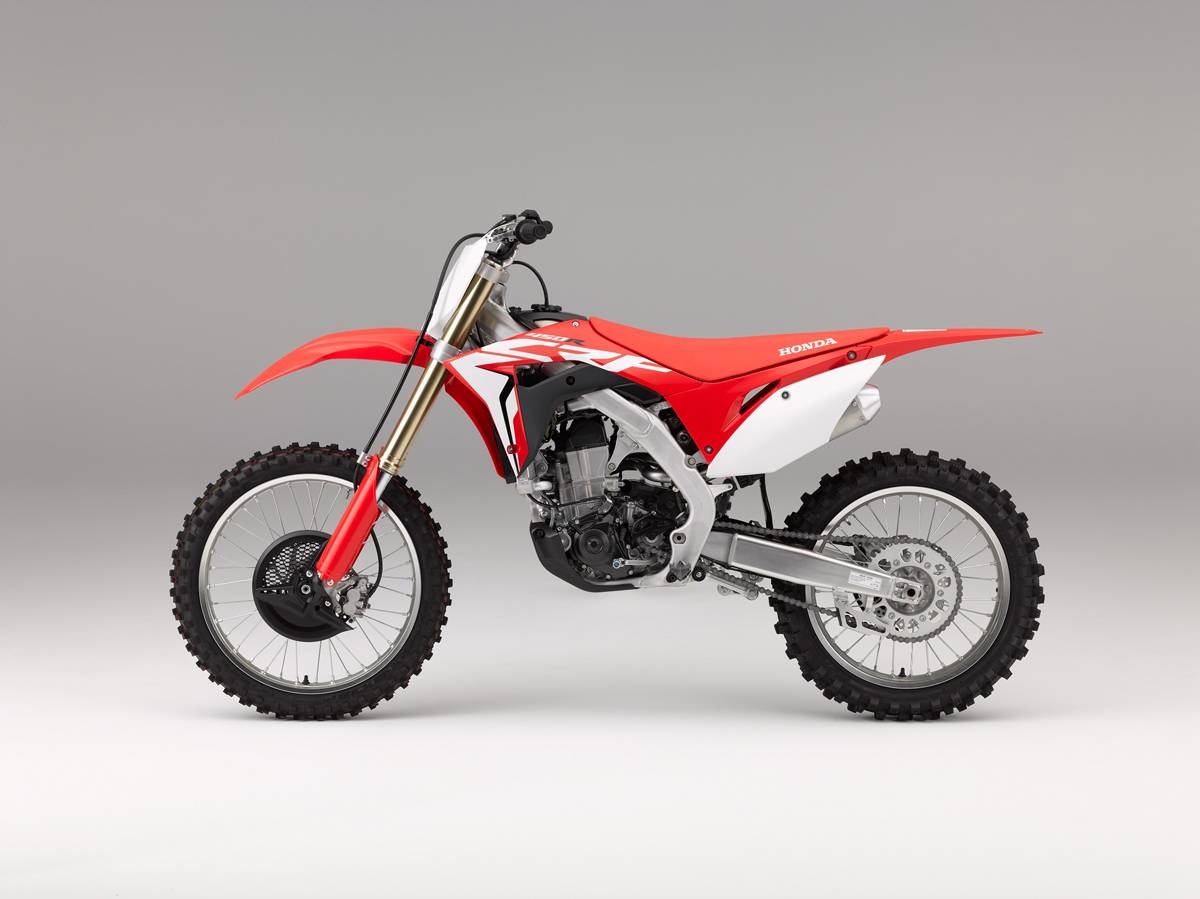

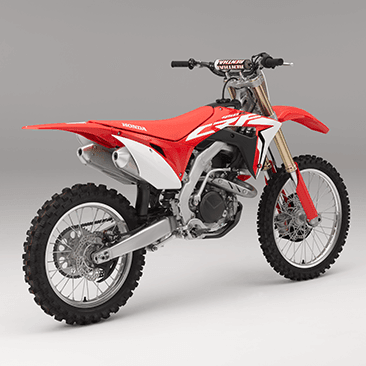

2017 CRF450R
The 2017 model is reimagined, it's the first 'from the ground-up' redesign of the CRF450R for eight years and packs a powered-up HRC designed engine with an 11% overall power boost, and stronger torque right through the rev range.
It gets an all-new seventh generation aluminium frame with new chassis geometry, lower centre of gravity and a titanium fuel tank making it lighter and more compact.
SUSPENSION
The new CRF450R is fitted with factory driven 49mm Showa USD coil spring front forks, developed from a version supplied to MX race teams. They are everything one would expect from effectively race-spec suspension, the out of the crate fork action is supple, smooth and fully in control.
SPECIAL FEATURES
For the very first time, an electric-start kit is available on the CRF450R. Kit specification and local availability will be announced later. The body is more compact with aerodynamically-efficient plastics with feature film insert graphics for optimum scratch resistance and a bolder effect.
| ENGINE | |
|---|---|
| ENGINE TYPE | 449cc liquid-cooled 4-stroke single cylinder uni-cam |
| BORE & STROKE | 96 x 62.1mm |
| COMPRESSION RATIO | 13.5:1 |
| CARBURATION | Fuel-injection |
| IGNITION | Digital CDI |
| STARTER | Kick |
| TRANSMISSION | 5-speed |
| DRIVE | Chain |
| FRAME | |
|---|---|
| DIMENSIONS (LxWxH) | 2,183mm x 827mm x 1,274mm |
| WHEELBASE | 1,482mm |
| RAKE & Trail | 27°22'x 116mm |
| GROUND CLEARANCE | 328mm |
| FUEL CAPACITY | 6.3 litres |
| KERB WEIGHT | 110.6kg |
| TYRES | |
|---|---|
| FRONT | 80/100 21-inch |
| REAR | 110/80 19-inch |
| SUSPENSION | |
|---|---|
| FRONT | Showa 49mm coil spring (305mm stroke) |
| REAR | Showa monoshock using Honda Pro-Link system (113mm stroke, 314 axle travel) |
| BRAKES | |
|---|---|
| FRONT | Single 260mm hydraulic wave disc |
| REAR | Single 240mm hydraulic wave disc |
| WARRANTY | |
|---|---|
| WARRANTY PERIOD | NO Warranty |
